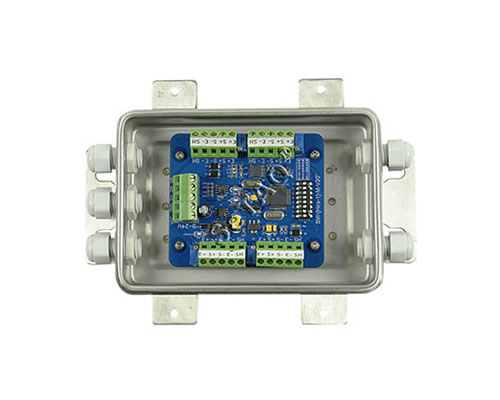

Single Channel Digital Weighing Junction Box - Hirs-1
? ? Suitable for hopper weighing, tank weighing, digital truck scale, industrial process weighing instruments. A single channel digital weighing J-Box Hirs-1 has all features of an AD-S module mentioned above. Besides, it can be connected to several analog load cells simultaneously and the eccentricity can be adjusted through potentiometers.
? ? Features and Specifications：

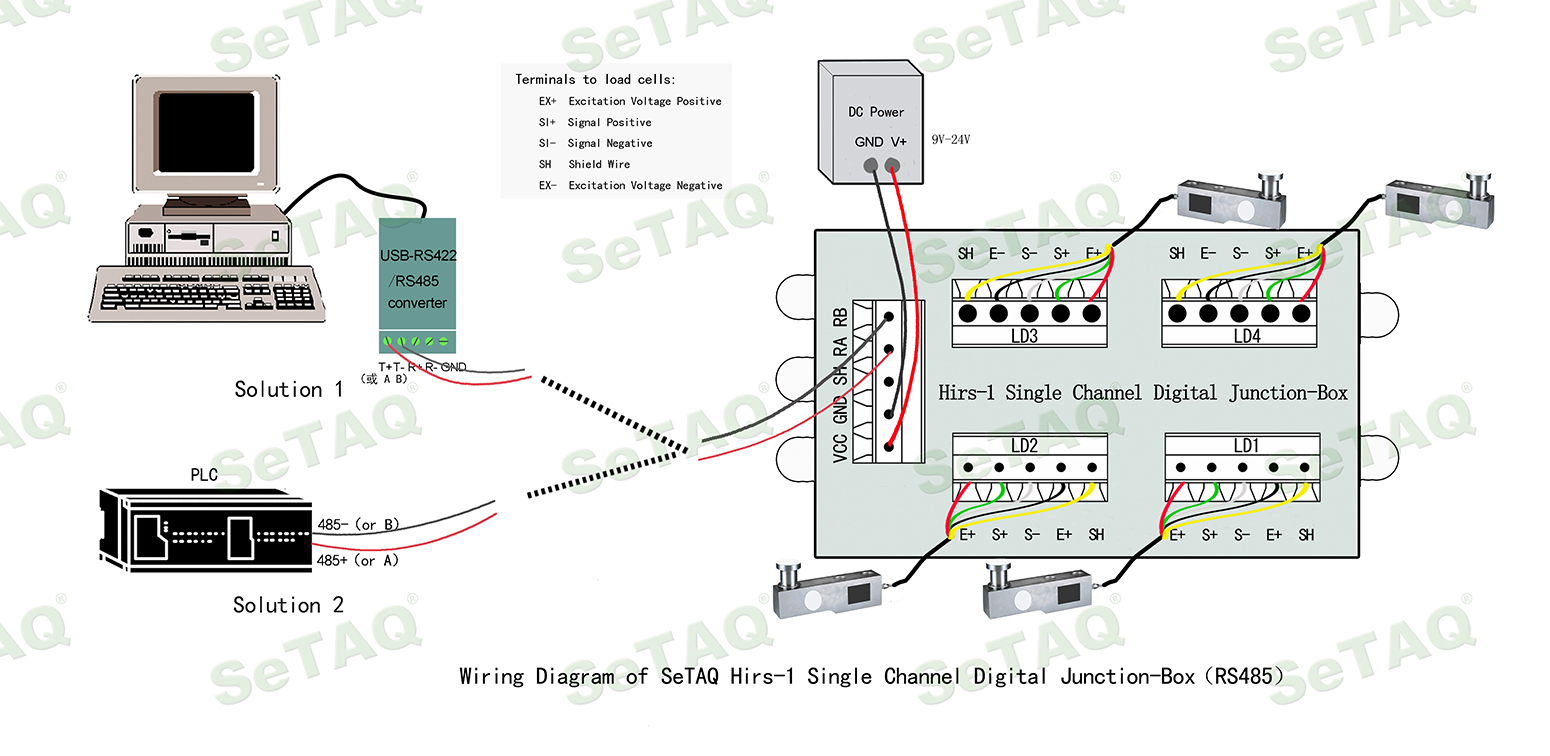

?★? HardwareInterface: RS-485interface, half-duplex.
?★? Software Protocol : Freeport/ Modbus RTU protocol (opt.)
?★? OperatingVoltage: 9V DC / 24V DC (opt.);
?★? Operating current:(only module)：<30ma(typical)<35ma(max)
?★? Dimensions（mm）：185×133×31
?★? A/D conversion,digital calibration, tare, zero setting/tracking, switch-on zero setting,anti-dithering;
?★? All the parameters can be set through serialinterface;
?★? Module addresses are availablefrom 0 to 31. Modules can work through bus communication;
?★? Baud rate,parity bit and data output format can be set. 1200～38400bps;
?★? Digital filtering: standard filtering or LPF;
?★? Lightning protection board (opt.)
?★? Samplingspeed: 3.125～400Hz;
?★? Storage ofthe parameters with protection against power failure;
?★? Complete protection: wrong wiring protection, overvoltage protection, transient voltage suppression;
?★? Operating temperature range: -40℃～+70℃; Storage temperature range: -60℃～+90℃
