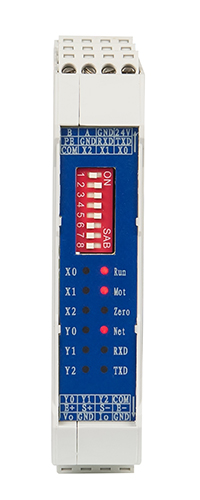

AD-S600/601 Series Weighing AD Module

? ??With 2 serial ports (RS-232 and RS-485) and MODBUS RTU protocol support, AD-S600/601 can communicate with a computer or PLC. Due to its continuous output, it can also be connected to a scoreboard.

? ? AD-S600/601 can provide stable, high speed and high precision weight values for your control system, so it can meet the stringent requirement of modern automatic control. Furthermore, the built-in A/D chip, memories and network communication chip are all from the best international electronic device manufactures. When we did PCB layout or electronic component wiring, we took the following influencing factors into consideration: temperature, moisture, vibration, Electrostatic Discharge (ESD), Electrical Fast Transient/burst, Electromagnetic Radiation (EMR), etc. Therefore, this product features high precision, good linearity, little temperature drift. From software aspect, several dynamic digital filters originally developed by SeTAQ can quickly eliminate various EMI and interference of mechanical vibration, so it can be used in many industrial fields.

Main Specifications:

★ 12 LED indicator lights + A 8-bit DIP switch

★ Excitation voltage of load cells: 5VDC

★ Serial port: 2 serial ports, RS-232 and RS-485 available at the same time

★ Analog output：4-20mA or 0-5V/10VDC (AD-S600-N only)

★ AD resolution: 24 bit

★ AD conversion (output) rate：400 samples/second

★ Output weight data rate: 6.25, 12.5, 25, 50, 100, 200 samples/second (opt.)

★ Operating voltage：24VDC

★ Maximum current: <100mA (including current consumption of four 350Ω load cells)

★ Enclosure dimensions : 110mm×23mm×116mm (with wiring terminals)

★ Operating environment：-20℃～60℃,relative humidity 10%～85% no condensing

★ Storage environment:-40℃～80℃,relative humidity:10%～85% no condensing

? ? ? ? ? ? ? ? ? ? ??? ? ? ? ? ? ? ?

? Features:

★ Several dynamic digital filters originally developed by SeTAQ can quickly eliminate various EMI and interference of mechanical vibration

★ Parameters of digital filters can be set

★ Auto zero tracking

★ With analog output (AD-S600-N only)

★ Stable performance, strong anti-interference, low power consumption, high reliability

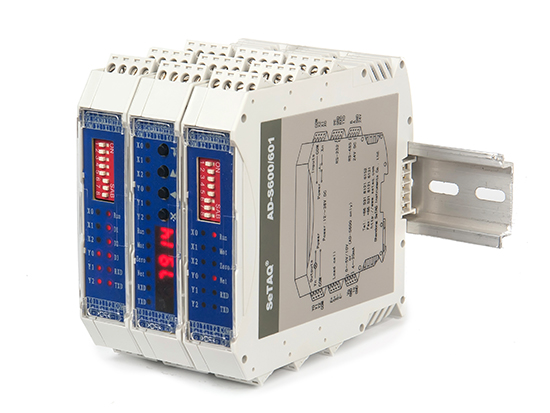

★ Guide rail type installation, easy to mount to power distribution cabinet

★ Can communicate with PC software through RS485/RS232

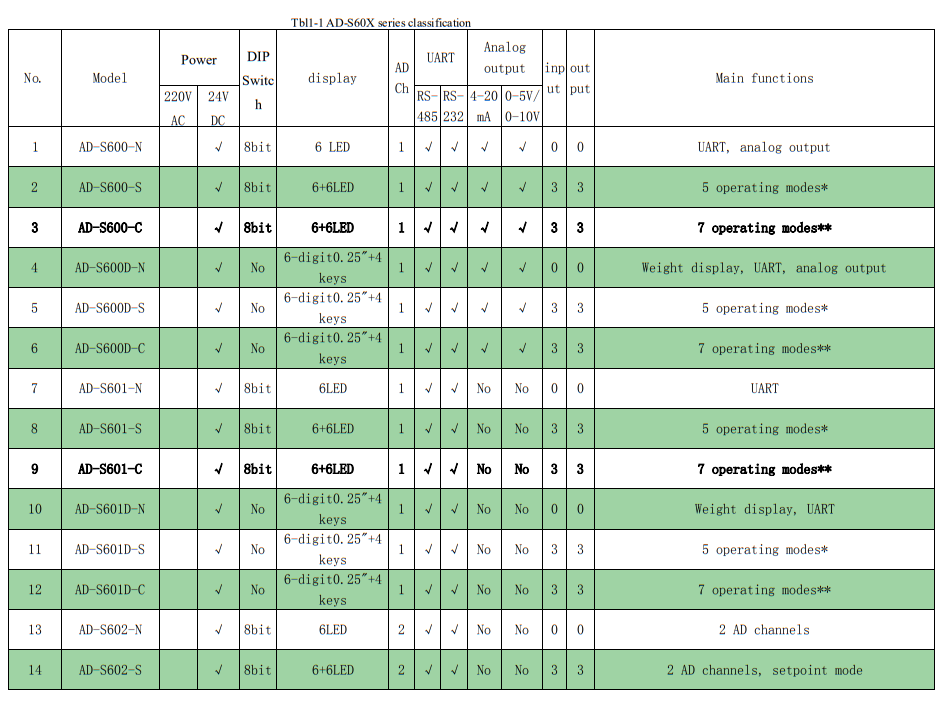

5 operating modes*: ?two setpoint modes, upper limit and lower limit mode, single material batch mode, subtractive mode.

7 operating modes**: ?two setpoint modes, upper limit and lower limit mode, single material batch mode, subtractive mode, static and dynamic check weighing modes.
