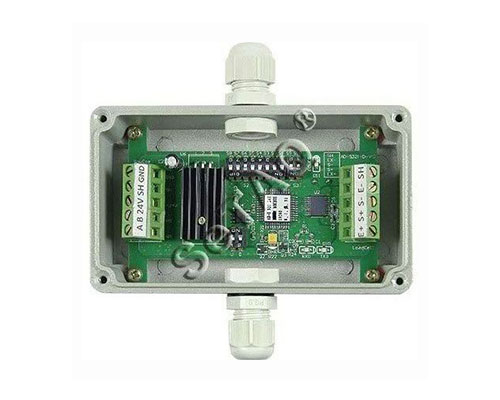

AD-S321/324-II Modules (Discontinued)
? ??
? ? For the manufacture of digital load cells, weighing indicators, process control weighing instruments, tensile testing machine, and other weighing or force measuring occasions.
? ? Features and Specifications：
★ OperatingVoltage: 24V DC ;
★? Measuring range: ±15mV? ?
★? A/D Resolution:1000000? ??
★? Temperature coefficient：≤5ppm／℃（typical）? ??

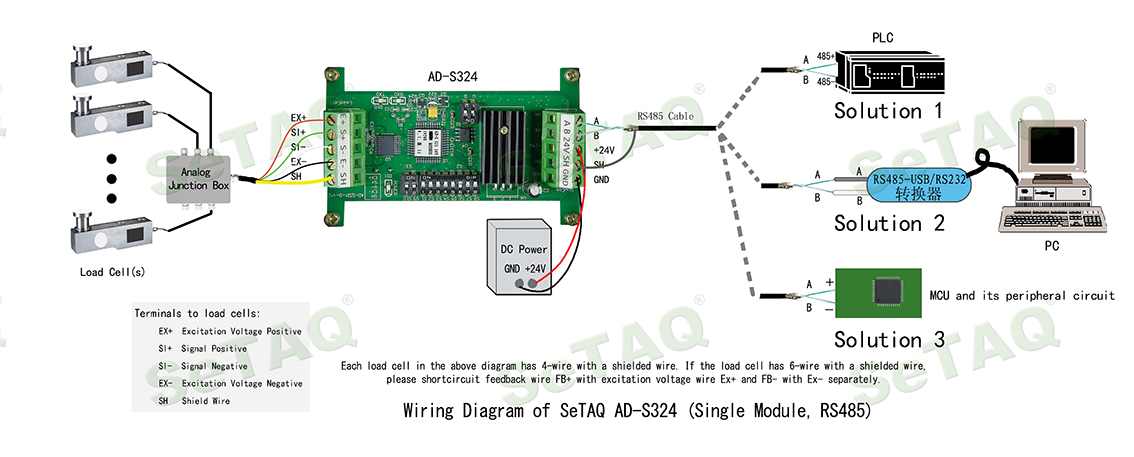

★ HardwareInterface: RS-485interface, half-duplex.? ??
★ Software Protocol: SeTAQ Freeport / Modbus RTU?
★? Dimensions（mm）：Rectangle：86×55×18? ??
★ A/D conversion,digital calibration, tare, zero setting/tracking, switch-on zero setting,anti-dithering;? ??
★? All the parameters can be set through serialinterface;? ??
★? Module addresses are availablefrom 0 to 31. Modules can work through bus communication;? ??
★ Baud rate,parity bit and data output format can be set. 1200～38400bps;? ??
★? Digital filtering: standard filtering or LPF;? ??
★ Samplingspeed: 3.125～400Hz;? ??
★ Storage ofthe parameters with protection against power failure;? ??
★? Operating Current:≤40mA;
★ Complete protection: wrong wiring protection, overvoltage protection, transient voltage suppression;? ??
★ Operating temperature range: -40℃～+70℃; Storage temperature range: -60℃～+90℃
