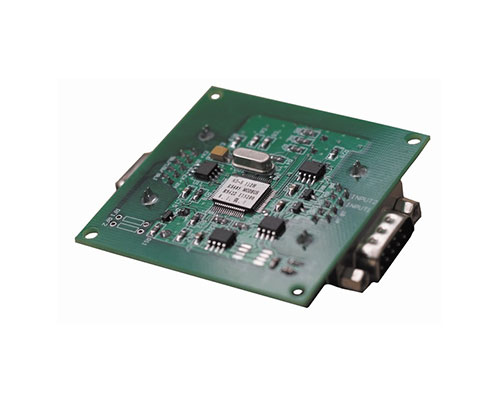

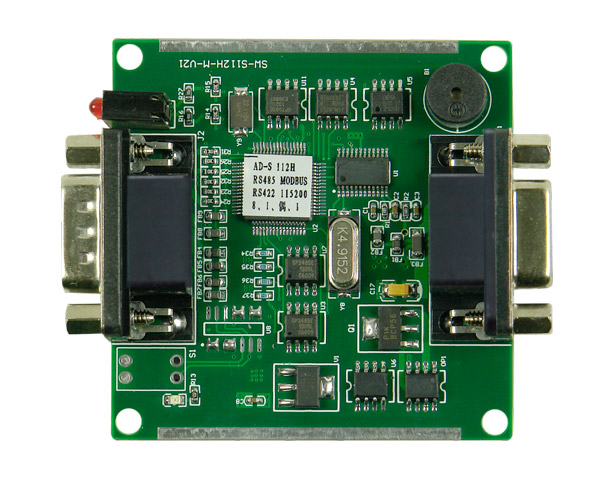

AD-S112H Modules
? ? Applicable to weighing-in-motion(WIM) with high precision demand, for example, belt weigher, vehicle weighing on highway, etc.
? ? Features and Specifications：

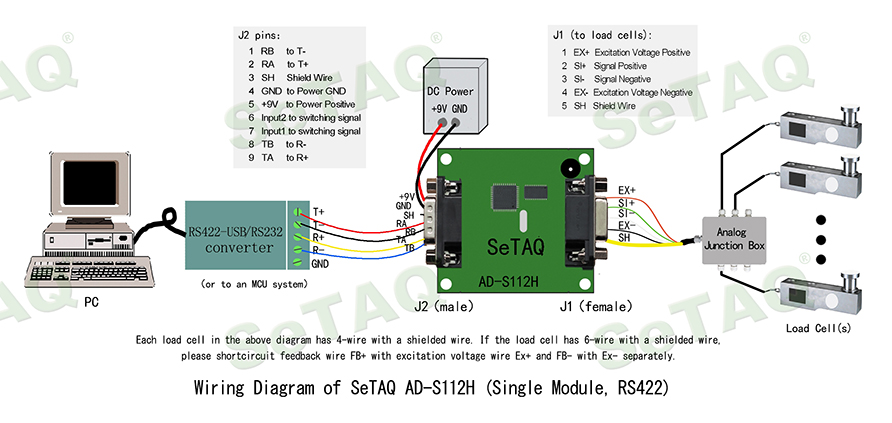

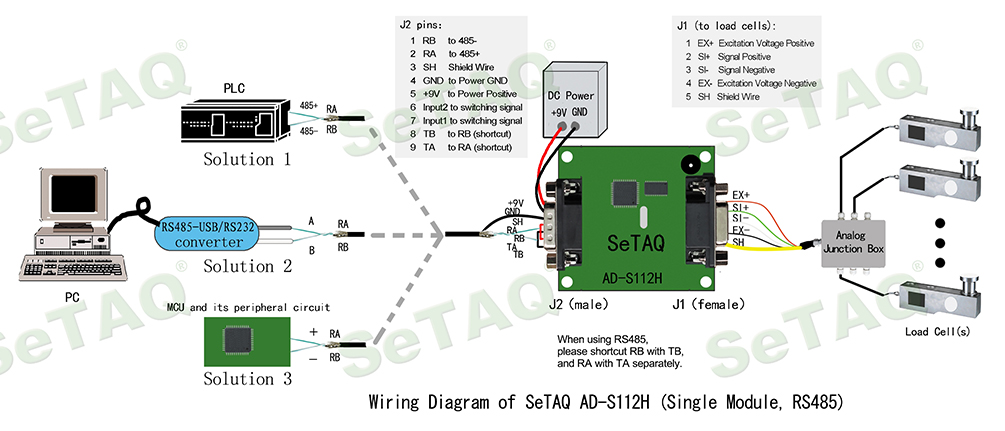

?★? HardwareInterface: RS-422 / RS-485 interface (opt.)
?★? Software Protocol:? SeTAQ Free / Modbus RTU protocol (opt.)
?★? Highest sampling speed: 400Hz
?★? Temperature coefficient：≤5ppm／℃（typical）
?★? Dimensions（mm）：Rectangle：60×60×15
?★? A/D conversion,digital calibration, tare, zero setting/tracking, switch-on zero setting,anti-dithering;
?★? All the parameters can be set through serialinterface;
?★? Module addresses are availablefrom 0 to 31. Modules can work through bus communication;
?★? Baud rate,parity bit and data output format can be set. 1200～115200bps;
?★? Storage ofthe parameters with protection against power failure;
?★? Aluminum alloy enclosure
?★? Two switch signal inputs(opt.)
?★? OperatingVoltage: 9V DC(6.5V～12V); Operating Current:≤40mA;
?★? Complete protection: wrong wiring protection, overvoltage protection, transient voltage suppression;
?★? Operating temperature range: -40℃～+70℃; Storage temperature range: -60℃～+90℃
